Universal fuel gauge. 52 mm mounting hole6 VOLT, POSITIVE GROUND, BLACK RAISED BEZEL --- 14 to 122 OHM RANGE. -- WILL WORK WITH OUR FDS199 and FDS200 FUEL SENDING UNITS. ***GAUGE MUST BE GROUNDED TO WORK PROPERLY, IN SOME CASES YOU MAY HAVE TO RUN an...

12 VOLT NEGATIVE GROUND--- BLACK RAISED BEZEL --- 14 - 122 OHM RANGE ***GAUGE MUST BE GROUNDED TO WORK PROPERLY, IN SOME CASES YOU MAY HAVE TO RUN A EXTRA GROUND WIRE FROM THE THREADED CLAMP TERMINAL TO A EXISTING BOLT TO GET A PROPER GROUND

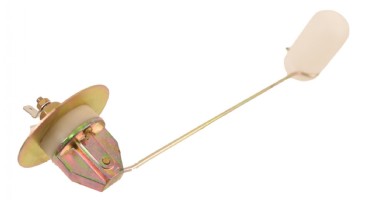

Flange depth to bottom of float: approx. 14 cm. Straight rod length to float: approx. 10 cm. Resistance: 14 ohms full to 122 ohms empty. Universal mounting flange Ø 63 mm, no pre-drilled holes. Mounting possible: drilling your own pattern in...

Flange depth to bottom of float: approx. 23 cm. Straight rod length to float: approx. 17 cm. Resistance: 14 ohms full to 122 ohms empty. Universal mounting flange Ø 63 mm, no pre-drilled holes. Mounting possible: drilling your own pattern in...

Diameter: Ø 60 mm Voltage: 12 Resistance: 10 - 180 Ohm

Diameter: Ø 60 mm Voltage: 12 Resistance: 10 - 180 Ohm

David Brown1200 Series:1200, 1210, 12121400 Series:1410, 1412700 Series:770, 780800 Series:880, 885900 Series:990, 995, 996Massey Ferguson:135, 148, 165, 168, 175, 178, 185, 18852 mm inbouwmaat12VOEM: K262707, K917374, K921147, K962496

Total diameter 52 mm Installation size Ø46 mm 12 volt Massey Ferguson: 135, 148, 240  David Brown 1200, 1210, 1212, 1410, 1412, 770, 780, 880, 885,  990, 995, 996 OE...

Massey Ferguson 230, 240, 245, 250, 260, 2620, 2640, 265, 2680, 275, 285, 290, 298, 550, 560, 565, 575, 590, 595John Deere 1020, 1030, 1130, 1630, 1830, 2020, 2030, 2120, 2130, 3030, 3120, 3130Diameter Ø 52mm x 12 VoltOEM: AL24294, 1877717M92, 187771...

International  Hydro 100 766 966 1066 1466 1468 1566 1568 4366 4568 Rate: 32-244 Ohm Voltage: 12 Volt Negative ground Includes green jewel lens in back side light port for proper back lighting. Gauge must be grounded to work p...

Srews in fuel pump of ID6, ID9, MD, MDV, MTA, ODS6, Super MD, Super MDV, Super WD9, Super WDR9, TD14, TD14A, TD6, TD9, [ W6TA, 400, 450, 600, 650 (Diesel) ], WD6, WD9, WDR9, Wheatland: 400, 450; OEM: 263791R92, 260390R94

6 Volt tank meter 0 tot 30 Ohm (leeg tot vol aanduiding) Spanning: plus op massa John Deere: 70 720 730 80 820 (2 cil) 830 (2 cil.) Vervangt: AF2170R, AF2739R Gauge: Gauge must be grounded to work properly; in some cases you may hav...

Every Temp- oil- amp or other gauge with a diamameter of 52 mm will with this on dash or under dash mounting bracket

Universal float for water and fuel Adjustable in height and float lenght Voltage: 12 - 24 Volt Ohm10-104-180 Diameter flens: Ø 71 mm
